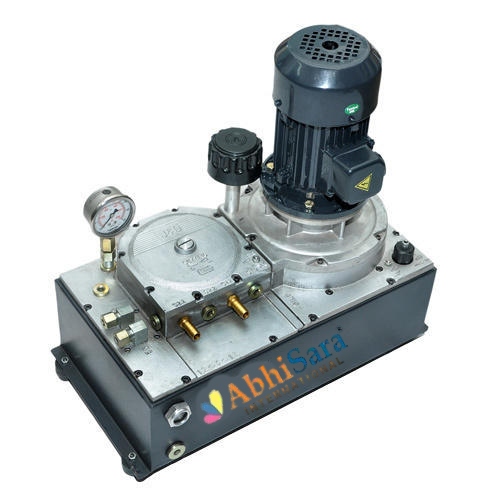

Automatic Web Aligner System

Automatic Web Aligner System

Web Aligner System

  • 0.5 H.P. Motor
  • Air Pipe – 5 Mtr.
  • Oil Pipe – 5 Mtr.
  • Sensor – 1 pcs
  • Adjuster – 1 pcs.
  • Air Filter – 1 pcs.
  • Oil Filter – 1 pcs.
  • Hydraulic Cylinder size 4”, 6” & 8”


In the specially designed non-contact Air flow sensors, the air is expelled from two opposing orifices. The differential air pressure is used to detect lateral wandering of the material in the process. The Airflow sensors are self-cleaning & fitted with a fine adjustment mounting bracket.

Hydraulic Cylinder:

It works on hydraulic pressure. It actuates the correcting frames. Available in different size from 2″ to 18″ stroke length.

Technical Specifications for Web Aligner System:

Motor rating (3 phase, 50 Hz)0.5 HP1HP
Pump flow rate3.4 l/min5.8 l/min
Tank capacity17 liters30 liters
Oil typeServo 32, Enklo 44, Hydro 37
Line pressure14 bar21 bar
Max. Operation force (50.8 mm dia. Cylinder)260kg389.5 kg
Follow-up speed
Max. At 3.4 l/min30mm/sec
At 5.8 l/min40mm/sec
Air sensor air pressure5 to 28 mbar, infinitely adj.
Weight including oil40kg60kg

Double Power Pack:

We are professionals in manufacturing Double Power Pack Renowned for providing high capacity, control options & configurations to be utilized in almost any application.

The Double Power Pack is designed and manufactured using premium quality hydraulic components selected from a wide range and assembled using high technology systems that are designed with the technologically advanced concept.

Electro-Hydro Web Aligner Unit

  • No maintenance
  • Labor-saving
  • Electricity saving
  • No wastage
  • More production

Structure of Web Aligner

M. S. Tank and M. S. Plate

System of Operation in Running of Electro-Hydro Web Aligner

  • Electronic of the film Photocell sensor for an edge.
  • Electronic 0 – 5 HP AC Motor.
  • Electrical Panel Board to Operate the complete Unit.
  • Hydraulic Cylinder – Adjuster – Oil Pipe.

Abhisara International’s Web Aligner System suitable for all types of Machines like:

  • Rotogravure Printing Machine
  • Lamination Machine / Coating Machine
  • Slitter Rewinder Machine
  • Doctoring Rewinding Machine
  • Paper Machinery
  • Textile Machine like Batching Machine, Inspection Rewinding Machine, etc
  • Tyre-Cord Machinery
