Automatic Web Guiding Systems

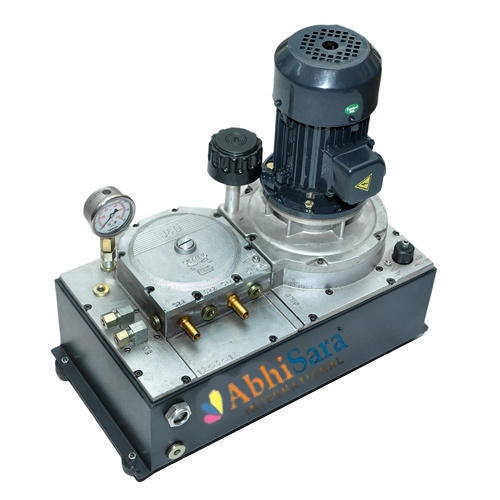

Automatic Web Aligner System

Automatic Web Guiding System Machine manufactured by Abhisara International can realize multi-layer material alignment, double the speed, free of waste in the refueling process, and no machine sticking.

Mask machine is a multi-layer non-woven cloth through hot pressing, folding forming, ultrasonic welding, waste removal, ear, and nose welding procedures to produce a variety of masks with certain filtration performance.

In the production of masks, multiple layers of materials should be neatly fitted together, otherwise, there will be waste products or even stuck machines.

Among the Web Guide Machines, Abhisara International Web Guide System for the mask machine is easy to operate and install.

With the system, the maximum speed of the mask machine can reach upto 500 pieces/minute, and the maximum speed of N95 (KN95) mask machine can reach upto 3000 pieces/minute.

What Is The Web Guiding System

Web Guiding System is a Machine that controls the position deviation of the coil material in the production line when it is conveyed.

The machine has the functions of automatic detection, automatic tracking, and automatic adjustment. It can track and control the marking lines, edges of the paper, film adhesive tape, aluminum foil, and other materials to ensure the neatness of winding and slitting.

Abhisara International’s Automatic Web Guiding System can achieve multi-layer material alignment. The guiding system is a controller for tracking the edge position of the working material or printing lines for high-accuracy differential and swing.

It is composed of industrial integrated circuits and has the advantages of strong anti-interference ability in a harsh working environment, high reliability, and long service life.


● One-piece design: tightly sealed, compact

● Brushless servo motor drive, maintenance-free

● Precision ball screw, accurate positioning

● Beautiful appearance: aluminum alloy finishing, surface sandblasting oxidation

● Flexible installation: can be integrated, separated, and installed, can be installed at any angle

How Our Automatic Web Guiding System Works

The equipment guides the sensor to emit infrared or ultrasonic to monitor the operation of the coil and send a signal to the controller.

After the controller finds that the web has a positional deviation, according to the command preset by the controller, controlling the drive system to swing to correct the web position.

The web guide control system is composed of a controller, a web guide sensor, an electric drive, and a web guide mechanism. These four components together form a closed-loop control system.

The sensor detects the edge position of the coil, reading the deviation between the actual position and the set position, converting this deviation into a voltage signal proportional to it, and then sends this signal to the controller.

After the signal is amplified and calibrated by the controller, the signal is output to the electric driver which drives the web guide mechanism to perform actions, according to the magnitude of the input signal, to guide the coil to a preset position.
