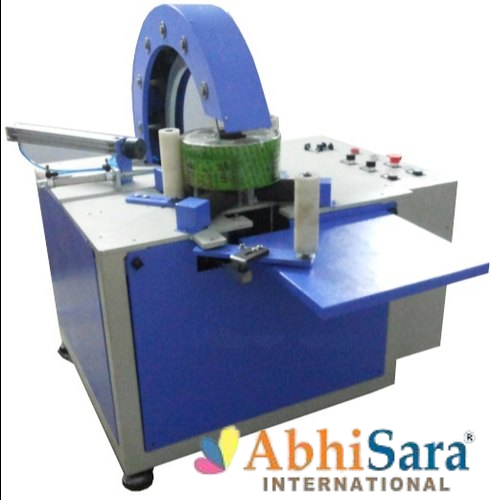

We are the leading supplier of Horizontal Coil Wrapping Machine made available to our clients at competitive prices
Product Details:
| Automation Grade | Automatic |
| Brand | Abhisara International |
| Material | MS |
| Voltage | 230 V |
| Power | 2 kW |
| Phase | Single |
| Capacity | 2-3 Coils/min (depending upon coil size) |
| Frequency | 50/60 Hz |
Abhisara International is one of the beat manufacturers, exporter, and supplier of Coil Stretch Wrapping Machine which is also known as Wire & Cable Film Wrapping Machine.
This Wire & Cable Film Wrapping Machine is used for Spiral / Periphery Stretch Wrapping of Coil Shaped Products and also Products with Long Lengths.
Our Coil Stretch Wrapping Machine has various for controlling the machine for wrapping the stretch film and jute/paper roll at desired wrap tension and for wrapping different wrap configurations. Our machine is designed for continuous operation and is rigid & sturdy. The machine is designed with an emphasis on functionality, reliability, and ease of operation.
Specification:
Power: 3 Phase + Neutral + Earthing (415v Ac 50 Hz) + 2 kW Power
Coil Diameter: Id: 150 mm To 350 mm | Od: 200 mm To 500 mm
Width: 50 mm To 100 mm
Weight: 2 To 25 Kg
Roll Diameter(Stretch Film): Id: Up To 75 mm [25 mm or 50 mm Core More Suitable] | Od: up To 130 mm
Width: up To 60 mm
Motors: Ring M: 1 Hp [Rotomotive Or Crompton Or Robox] | Roller M: 0.5hp [Rotomotive Or Crompton Or Robox]
Drives: Ring D: 1 Hp [L & T Or Crompton] | Roller D: 0.5hp [ L & Tor Crompton ]
Machine Dimension: 10 Mm Base Plat | 12 Mm Ring Plat
Size: 1250X1250X1250(Aprox.)
Weight: 400 kg.*
Working Table Size: 700 MM (approx.)
Control System: Touchpad HMI 8 Input-output plc
Features:
- Adjustable film overlap.
- Motors for Wrapping Ring is controlled by AC frequency.
- PLC Based Operation.
- Automatic ejector [more suitable for less than 25 kg]
- Controllable cycle time.
- Bought out Components used in the machine are of reputed makes.
- Automatic cutting and holding of film.
- Adjustable stretch ratio.
- Vibration-free operation.
- Logo Plc base operation for the timing of wrapping, rotation, cutting, ejection.
- Advance paper relish system.
- Advance stretch holding system.
