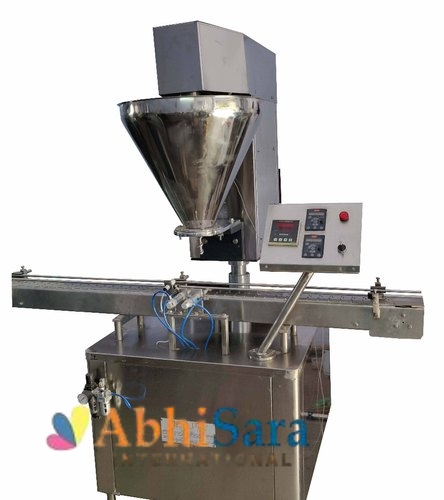

Toner Powder Filling Machine

Toner Powder Filling Machine

Toner Powder Filling Machine is a precision built on sturdy welded MS frame completely enclosed in stainless steel sheet and doors are provided to facilitate the servicing of the machine. The unit is made compact, versatile, and enclosed in stainless steel elegantly matt finish body.

Operation:

  • The dried, sterilized and siliconized bottles are fed through the infeed Turn Table on the infeed SS/Delrin conveyor belt at the required speed for feeding. When the bottle reaches under the filling head, it is held by the pneumatic bottle holder. Immediately it is being sensed by the bottle sensor and gives signals to the magnetic clutch to start to rotate which is mounted on auger shaft. It will fill the desired amount of powder to the bottle through auger, where rotation time is set in the Timer. After filling the first bottle pneumatic bottle holder releases the first bottle to move on conveyor for the next operation.

Product Details:

MaterialStainless Steel
Number Of Filling HeadsSingle Head
Usage/ApplicationIndustrial
BrandAbhisara International
Output18 to 20 BPM
Voltage230 V
Automation GradeAutomatic
Pressure6 Kg Air Pressure
Accuracy+/-1%
Filling Range50 gm to 500 gm
Frequency50-60 Hz
